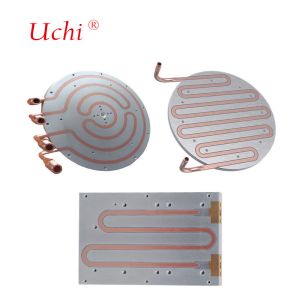

Cold Plate Liquid Cooling Circular Water-Cooled Radiator Aluminum Liquid Cooling Plate Refrigeration Chiller
We are greatly good at fricton welding stir, because we can offer customer with best possible price and keep in good quality, with fast production time, recently we have cooperate with Intel corporation for the aluminum optical fiber chill plate friction welding liquid cold plate which inside by skiving fin, now we are keep struggling for more high precise technology for the FSW products.
Friction stir welding is a solid-state joining technology. It generates heat by the friction between the rotating stirring head and the surface of the material to be welded, locally heating the material to a plastic state. Then, under the squeezing and stirring action of the stirring head, the connection of different components is achieved. In the manufacturing of FSW water-cooled plates, this process can seal and connect water cavities formed by different processes with the outer cover without the need for solder or flux.
Structural features: It is usually composed of a water cavity with a flow channel and a cover plate. The design of the flow channel is determined based on factors such as the thermal resistance distribution of the specific application. The cover plate is connected to the water cavity by friction stir welding, with high weld quality and good sealing performance.
Performance advantages
High seam reliability: There are no weld porosity defects, no element burning loss, and no hot cracks in the weld seam, which can ensure high reliability without leakage.
High material strength: As it is a solid-phase connection, the base material will not soften, and the material strength of the joint part is equal to or higher than that of the base material.
Good heat dissipation performance: Friction stir welded water-cooled plates can be designed with larger flow channels, which can further reduce thermal resistance. Especially when dealing with complex flow channels and those with height differences, they offer greater flexibility and more stable heat dissipation performance.
Economical and environmentally friendly: The welding process is simple, with high production efficiency, suitable for mass production, and no additional welding materials are required, making it economical and environmentally friendly.
Application fields: Widely used in new energy vehicles, energy storage systems, photovoltaic systems, heavy machinery equipment, electric aircraft, Marine vessels and other fields that require efficient heat dissipation.
R & D strength: our company has graduated engineers from South China University of technology and Engineering Research of Huazhong University of science and technology on the new models, the thickness of the water cooling plate is 0.5mm and the cooling power is 700W. At present, there are 10 engineers in the company, and 3 persons had working experience in foreign enterprises
Production capacity: the production capacity of CPU radiator can reach 50000 PCs in one month, the capacity of heat pipe water cooling plate can reach 12500 PCs, and the heat pipe can reach 150000 Pcs a month, and the branch plant is under expansion.
Sales volume: at present, the monthly turnover can reach 4 million, and the peak season can exceed 700 million, and the annual business can reach 70-80 million.
Our machines:
Production equipment: 25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Our testing machines:
Testing equipment: 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Our team:
We as a team,move forward and backward together;
We have good services,high efficiency and great development;
We are market -sensitive and have strong will for the modern market.
Our Certificate
Our service:
1.Once received the inquiry will be quickly replied
2.Keep the product be qualified and price be reasonable and competitive.
3.Fastly arrange production and improve efficiency.Get the goods be finished on time.
4.We can advice the best transportation depends on the goods weight and cubic meter
5.Any questions with the goods we made, we will offer the best solution and technique support.
FAQ
1. Q:Are you trading in company or manufacturer?
A:We are the professional manufacturer of heat sink and water cooling plate that has much experiences and strong technique team,automatically and mechanized production
2. Q:Have you exported the goods before and to which regions?
A:60% goods in total has exported abroad,to Japan,India,British,Canada,America and Brazil.
3. Q:How many employees you have?
A:we have about 100 employees,including sales,purchase,engineering,QA,warehouse and production department.
4. Q:If I agree with the design,can you provide the samples we need?
A:Yes,we can.we surely will provide the samples to you for confirmation before mass production.Meanwhile the drawing we could provid if needed
5. Q:What packing you're using and can be assured safty?
A:Every goods are be packed with customized packing ways in normal cartons with tight proof fabric and wooden cartons for great protection, so it is safe during transportation.
6. Q:If we have any questions with products,can you provide the technique and solution?
A:Every products are fully checked before shipping, if there is problems you're facing,please feel free to let us know,we will offer best solution at once.
